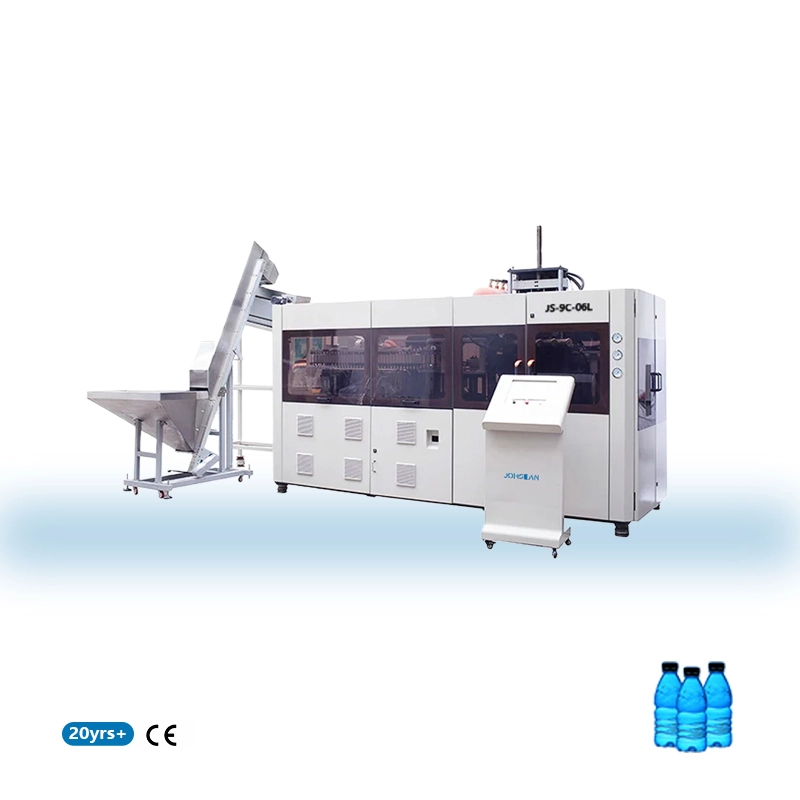

JS-9C-06L Fully Automatic PET Bottle Blowing Machine Stretch Bottle Making Machine
JS-9C-06L pet automatic stretching bottle blowing machine is a bottle blowing machine specially designed for small capacity, the maximum output per hour can reach 19000 bottles, is the best choice for cosmetics bottles, hand sanitizer bottles, dishwashing liquid bottles and other daily chemical bottles.
Production Capacity：19000 BPH
Number of Cavity：9
Max. Bottle Diameter：70 mm
Max. Bottle height: 280mm
More Choices
Products Overview
Introducing the Johsean Machinery JS-9C-06L High-Speed Fully Automatic PET Bottle Stretch Blow Molding Machine – the ideal solution for businesses looking to increase their plastic bottle production. This machine is designed for high efficiency, durability, and ease of operation, making it a perfect complement to any production line.
The Johsean Machinery High-Speed Fully Automatic PET Bottle Stretch Blow Molding Machine can produce up to 1500 bottles per hour, ensuring your business can produce large quantities of plastic bottles in a short time, saving costs and increasing efficiency. In addition to its speed, this machine is also precise, ensuring that your bottles consistently maintain high quality.
The Johsean Machinery High-Speed Fully Automatic PET Bottle Stretch Blow Molding Machine features a simple and easy-to-use control panel, allowing even inexperienced operators to easily get started. All production processes are automated, minimizing the risk of errors and ensuring a consistent output of flawless bottles.
Constructed from premium materials, this machine is robust, durable, and has a long service life. It can withstand harsh working environments and operates efficiently even under the most challenging conditions. Its compact size and clever design make it easy to install and set up, saving you time and effort.
Another major highlight of the Johsean Machinery JS-9C-06L high-speed fully automatic PET bottle stretch blow molding machine is its energy-saving design and low energy consumption. This helps reduce your company's energy costs, making it a more cost-effective solution to meet your plastic bottle production needs.
In terms of price, the Johsean Machinery JS-9C-06L high-speed fully automatic PET bottle stretch blow molding machine is highly competitive. It is an affordable option for businesses that need high-quality, reliable machinery but do not want to spend too much.
Main Features
1. Forging mould shelf
Mould shelfs use forged steel components which effectively prevent it from cracks, blisters, looseness and other casting defects. Its advantages include high mechanical strength, stable processing quality and high yield .
2. Module generalization
It includes rack assembly, mould assembly, stretching mechanism, heating light-boxes, wind-box, heating chain, mechanical hand, blowing unit, air supply treating device, gas (oil & water) dispenser, etc.
3. Low noise
The rotating slide uses reasonable guide curve to minimize mechanical vibration and noise generated when it works. The whole machine is fully enclosed and there are silencer and acoustic insulation inside. All of this reduce the noise well together.
4. High degree intelligence
The data on the human-machine interface reflects how the machine is running. If a failure occurs, maintenance person can repair it quickly according to the fault type which will also be displayed on the man-machine interface.
Product parameters
| Number Of Cavity | 9 Cavity | Max.Container Volume | 0.7L |
| Production Capacity | 19000 BPH | Max. Bottle Diameter | 70mm |
| Installed Power | 90KW | Max. Bottle High | 280mm |
| Uesd Power | 50KW | Max. Neck Size | 30mm |
| Machine Size | 5.5*1.9*2.3M | Machine Weight | 7.5T |
| Blowing Air Pressure | 35 KG/cm2 | Blowing Air Consumption | 7500L/min |
| Cooling water Pressure | 4-5 Kg/cm2 | Cooling water Temperature | 10-20°C |
Product details
2. The heating box adopts constant temperature design and automatically exhausts heat. The box can be turned over, the tube adjustment is simple, easy to operate, the tube price special cooling system, can ensure that the bottle mouth does not deformation.
Our advantage
Has accumulated more than 20 years of machinery and mold manufacturing experience.
Has a perfect production process, has its own production team and processing equipment, to ensure timely delivery.
Team of 9 technicians all have international passports and can be arranged to go abroad at any time.
Good cost performance and perfect after-sales service, In the customer won a wide range of praise!
According to the needs of different custormers,adopt different configuration schemes to save
Highly automated and intelligent, high output, saving a lot of air consumption
Using well-know components from Japan, Germany, Taiwan, stable and durable
Custom process
We provide you with a complete customer service system to provide you with real-time services from pre-sale, production process and after-sales service!
Pre-sale Service
● Field visits, visits, preparations
● According to the actual situation of the customer to propose the optimal solution
● Technical communication with customers, negotiation, solving problems
● Determine the final production implementation plan
Equipment production process
● According to the production arrangement, timely feedback to the customer on the production schedule
● Inviting customers to inspect and inspect during the production process
● After the completion of equipment production, the customer is invited to test the machine on site to check the product quality.
After-sale service
● Provide one-year free warranty period for customers and free replacement parts for equipment quality problems
● Dispatch engineers to the customer to carry out equipment installation, commissioning, technical guidance, personnel training
● Maintaining customer product data for permanent storage through the ISO Quality Certification Management System
● Pay a regular visit to customers, suggest equipment maintenance, and provide the latest technology updates
Our service
● Minor customization
Minor customization refers to custom logos, packaging, or graphics
● Design-based customization
The supplier supports customization based on design drawings
● Sample-based customization
The supplier supports customization based on samples
● Full customization
The supplier supports customization based on specific requirement descriptions
About Johsean
Johsean Machinery is a professional manufacturer of fully automatic PET bottle blow molding machines, located in Taizhou City, Zhejiang Province. Our team has 20 years of experience in manufacturing PET stretch blow molding machines. Since our inception, we have been committed to becoming a trustworthy partner, providing customers with efficient, low-energy-consumption, and stable equipment, as well as high-quality service. Our services include:
√ Fully automatic/semi-automatic electric PET blow molding machines
√ Turnkey projects for PET bottle production lines
√ Online services for PET bottle production lines and filling lines
FAQs
1. Our machine has some software crush down or data missed, you could connect your machine to the internet and we could updated or recover factory setting.
2. We could offer online instruction through Skype account, which means we could tell you what caused to your machine's unsatisfied performance when you show us how your machines runs throughonline video, and our engineers will figure it out together with you.
3. We could send our engineers to your country, they are all experienced in repairing machine and working abroad. and they are exclusive for oversea sales.
